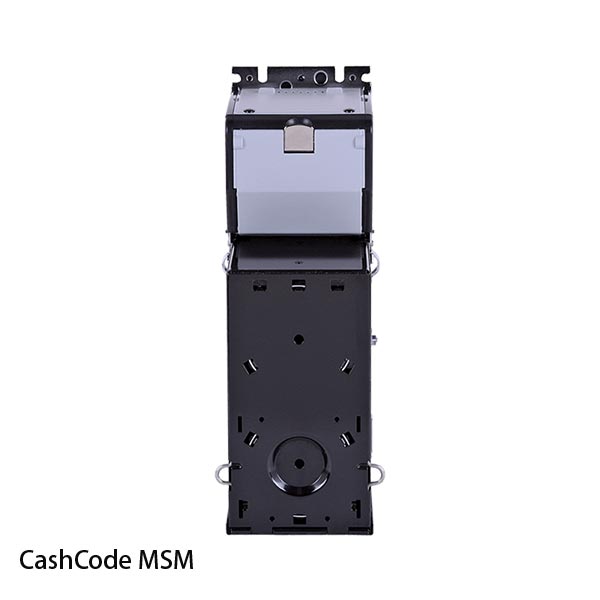

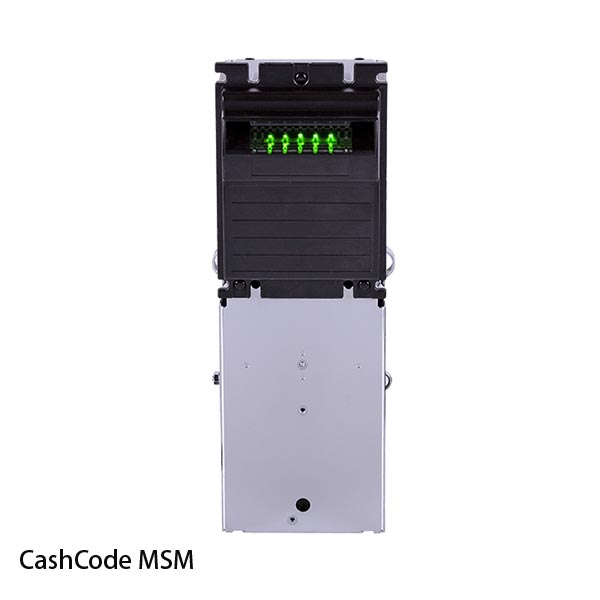

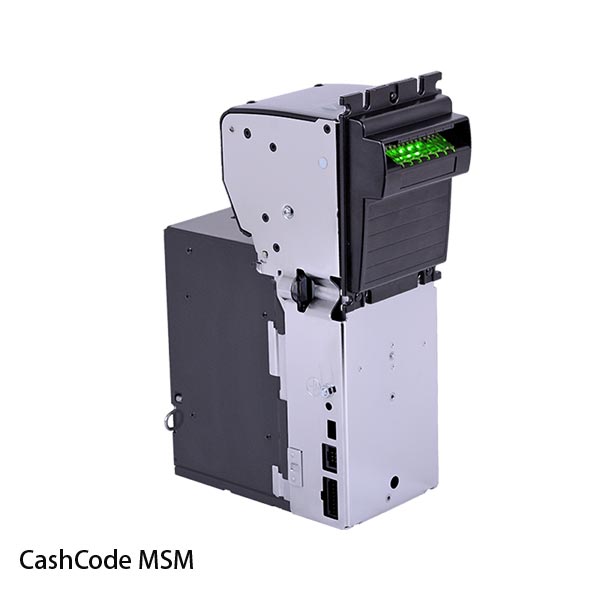

Note Validator CashCode MSM
Crane CashCode MSM
Benefits
Outstanding technology with high acceptance. Unique validation technology utilizes 4 different sensor technologies
Reduce jam rates. Effectively processes multi-width banknotes using a proven self-centering mechanism
Global currency. Supports 35+ countries with multi-width currencies of 62-77mm bill width
Limit unnecessary service calls. Advanced algorithms support self-tuning and self-calibration reducing repair trips
Protect against counterfeit and manipulated notes. Lock and seal tab cashbox configurations enhance security
The CashCode MSM BackLoad is a multi-width bill validator designed to meet the needs of high volume, indoor or outdoor applications. Completes transaction in less than 2.5 seconds, this unit is widely deployed as part of bill payment systems in self-service kiosks across 35 countries, such as the Euro and Brazilian Real. The MSM BackLoad performs daily volume transactions of 500 or more bills.
A reliable self-centering mechanism and beltless transportation guides to perfectly center bills of different widths. This provides world-class acceptance to street grade bills or barcoded tickets and includes high security for authentic validation and anti-stringing. The CashCode MSM BackLoad is ideal for financial services applications like Bill Pay Kiosks, Mobile Top-up Kiosks, Petrol Terminal Kiosks, Hospital Service Kiosks and Admission Kiosks.
Industry Format
-
Backload, Upstacker, Downstacker
Dimensions (H x W x D mm)
-
272mm x 104mm x 154mm
Note Validation
-
Note path width: 62mm – 77mm Note length: Standard length 160 mm, Optional length 180 mm
Interfaces Supported
-
12 V: ccNET(single slave, RS232), CCS (serial, TTL), Pulse, (opto-isolated (IPI), ID-003 (TTL), MDB
-
24 V: MDB, Single price (with adapter), Host Intelligence Interface (HII, with adapter)
Operating Temperature
Firmware Updates
-
Portable memory card, host network download
Note Acceptance Speed
-
2.5 seconds
Weight
-
1.7 kgs
Compliance
-
CE, UL 756, IEC 60950-1, FCC, RoHS
Power Requirements
-
12 V DC +/-1 V
-
24 V AC or 15 V DC – 42.5 V DC
Bezels
-
Standard, running lights, coin/vandal-resistant metal
Acceptance Rate
-
98% or higher
Note Insertion
-
4-way
Barcode Ticket Insertion
Validation Sensors
-
Optical, Inductive, Dielectric, Ultraviolet
