Product Overview

Self-Service Banking Kiosk is a fully integrated, turnkey hardware solution designed for banks, credit unions, and financial institutions. TopGood designs and manufactures the kiosk enclosure, integrates cash handling modules, card readers, secure keyboards, receipt printers, and touch displays into a single, ready-to-deploy unit.

Note on Software TopGood is a hardware integrator. We provide the kiosk enclosure and integrated hardware modules with standard interfaces. KYC/AML verification software, transaction processing systems, and backend management platforms are to be supplied and integrated by your chosen software vendor.

Core Applications

  • Cash Deposit Machine (CDM) Bulk cash acceptance with multi-cassette storage
  • ATM / Cash Withdrawal Cash dispensing with configurable denominations — ATM
  • Bill Payment Kiosk Utility bills, loan repayments, tax payments
  • Account Services New account opening, card issuance, balance inquiry
  • Currency Exchange Foreign currency buy/sell with KYC hardware

Hardware Specifications

Module Specification
Industrial PC Intel Core i3 / i5 / i7 (6th–13th Gen), 8–16GB RAM, 128–512GB SSD, Windows 10/11 IoT or Linux
Touch Display 21.5″ – 27″ PCAP multi-touch, 1920×1080 FHD, optional privacy filter
Cash Acceptor Bulk or single-note acceptance, 1,000–10,000 notes capacity, multi-currency
Cash Dispenser 4 denominations, 500/1,000/3,000 notes per cassette
Coin Handling Coin dispensing (change giving) — no coin acceptor
Card Reader Magnetic stripe + EMV chip + NFC/contactless (CRT/Saturn series)
Secure Keypad PCI 4.x/5.x certified, EPP with DES/TDES/AES encryption
Receipt Printer 80mm thermal printer, auto-cutter, 200mm/s
Barcode/QR Scanner 2D imager, mobile payment code compatible
KYC Hardware Full-HD face recognition camera with liveness detection + ID/passport scanner (OCR + chip reading)
Security Vault UL-291 or CEN-I certified steel safe
Card Printer (Optional) 4-hopper, dual-sided, magnetic stripe + contact chip encoding
Power 110VAC (US/JP) or 220VAC (EU), 12V/24V DC internal
Connectivity RJ45 Ethernet + 4G LTE (dual backup)
Enclosure Cold-rolled steel, electrostatic powder coating, custom RAL colors
Dimensions Approx. 1,600 × 800 × 600 mm (H×W×D), customizable
Certification CE, CB, FCC (upon request)

Frequently Requested Add-Ons (Aug 2026)

Based on customer inquiries received in August 2026. Any of these modules can be added to your Self-Service Banking Kiosk configuration.

RFID / NFC Module

  • Reader options: HF (13.56 MHz) for NFC payments and access control; UHF (860–960 MHz) for asset tracking and library management.
  • Compatible standards: ISO 14443A/B, ISO 15693, MIFARE Classic / DESFire / Ultralight.
  • Use cases: Contactless card issuance, NFC mobile-wallet acceptance, library check-in/out, employee access control.
  • Integration: USB or RS-232; standard SDK and API documentation provided for your software vendor.

Enhanced KYC Hardware

  • Full-HD face recognition camera — 2 MP+ resolution, wide dynamic range, IR night vision, integrated liveness detection (anti-spoofing).
  • ID / Passport scanner — OCR + ICAO 9303 chip reading (ePassport), MRZ decoding, supports 200+ document types.
  • Liveness detection — Passive and active algorithms; meets EU GDPR and financial-sector compliance requirements.

Note: KYC/AML verification software is not included. TopGood provides the hardware modules with standard interfaces; your software vendor handles identity verification logic and backend integration.

Outdoor / Weatherproof Option

  • Enclosure: IP65-rated sealed cabinet with forced-air ventilation and heater for cold climates.
  • Display: High-brightness LCD (1,000+ nits) with anti-glare coating; operating temperature −20 °C to +50 °C.
  • Power: Dual 220 V AC + solar-panel ready (with external charge controller).
  • Connectivity: 4G LTE primary + RJ45 backup; outdoor-rated antennas.

Privacy Filter

  • Optional 3M privacy filter (micro-louver technology) integrated into the PCAP touch layer — narrows viewing angle to ±30° without compromising touch sensitivity. Recommended for banking and other privacy-sensitive environments.

Software Integration — Protocol Reference

All hardware modules communicate via standard protocols, so your software vendor can integrate without custom drivers:

  • Cash handling: CEN/XFS, J/XFS, or proprietary DLL (per module vendor).
  • Card readers: PC/SC, CCID, or proprietary SDK.
  • Printers / scanners: ESC/POS, USB HID, or vendor SDK.
  • Cameras / KYC: UVC (USB Video Class), TWAIN, or vendor SDK.
  • RFID / NFC: PC/SC or proprietary SDK.

KYC/AML software, transaction processing, payment gateways, and backend management platforms are supplied and integrated by your chosen software vendor.

Product Gallery

Bank Kiosk Front View
Bank Kiosk Series — Front View

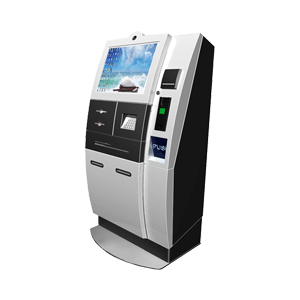

Bank Kiosk Side View
Bank Kiosk Series — Side View
Bank Account Service Kiosk
Account Service Kiosk
Currency Exchange Kiosk
Currency Exchange Application

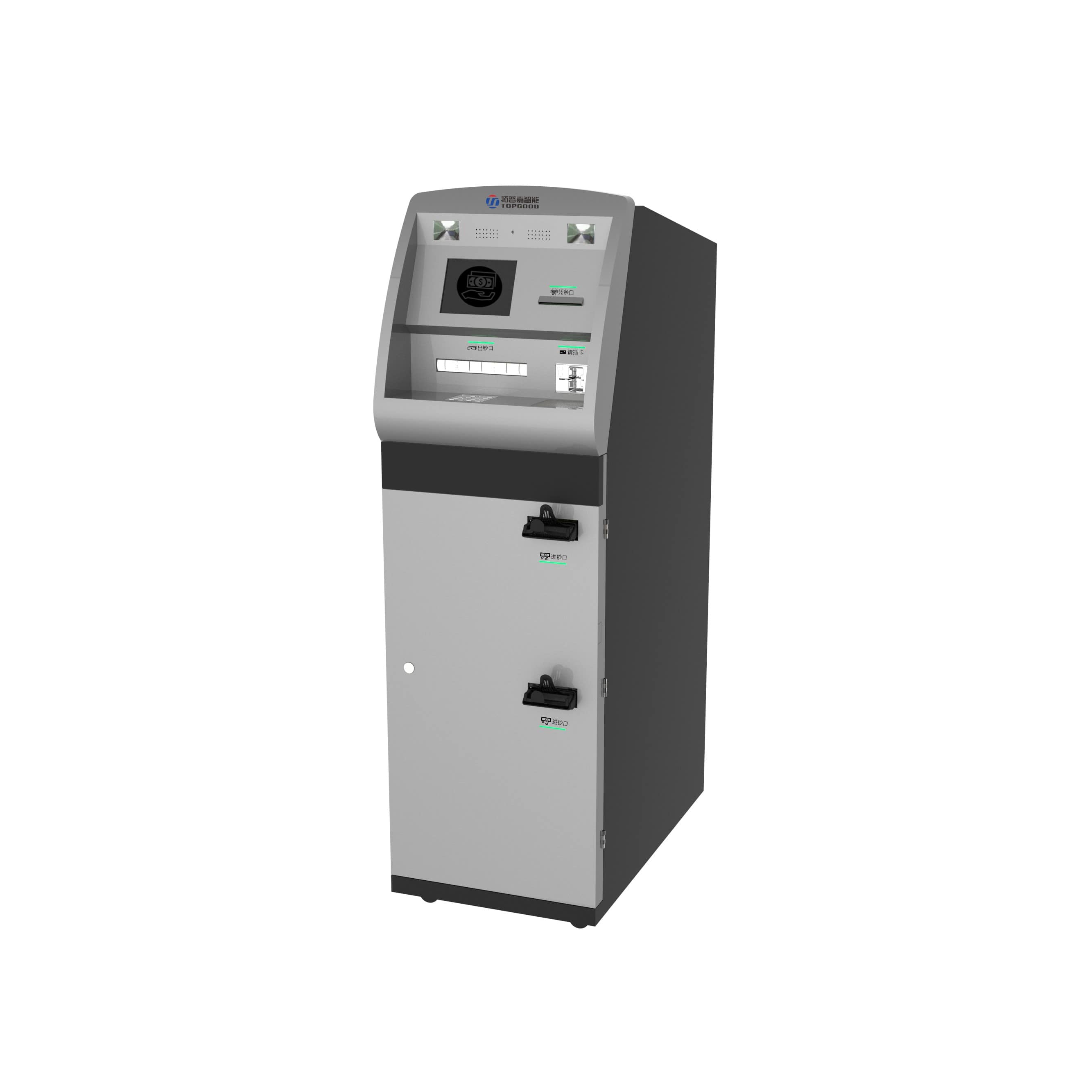

ATM CDM Kiosk
ATM / CDM Application
Kiosk Internal Structure
Internal Hardware Integration

📌 Images Pending:

The following images are recommended for this product page and should be added when available:

  • High-resolution hero image of Self-Service Banking Kiosk (front 3/4 view)
  • Close-up of cash handling modules (acceptor + dispenser)
  • KYC camera and ID scanner module detail
  • Real deployment photo at a bank branch (if available)

Why TopGood

  • 14 Years of Kiosk Integration Experience Since 2012, specializing in self-service terminal enclosures and hardware integration for banking, retail, and government sectors.
  • Turnkey Hardware Delivery We source, integrate, and test all hardware modules in-house. You receive a fully assembled, tested unit ready for software integration.
  • Flexible Customization Module brands, screen sizes, enclosure dimensions, and colors are all customizable based on your project requirements.
  • Standard Hardware Interfaces All modules communicate via standard protocols (USB, RS-232, Ethernet), ensuring seamless integration with your software vendor’s KYC/AML and transaction processing systems.
  • Global Certifications CE and CB certified for European markets; FCC available for North America upon request.

Customization Process

  1. Requirements Confirmation Share your hardware specification (module brands, screen size, cash capacity, etc.)
  2. Quotation We provide detailed BOM and manufacturing quotation within 48 hours
  3. Enclosure Design 3D drawing and prototype approval
  4. Module Procurement & Integration In-house assembly and burn-in testing
  5. Delivery FOB Shenzhen, wooden crate packaging available

Get a Quote

Contact us with your project requirements and target quantity. We will prepare a tailored proposal within 48 hours.
